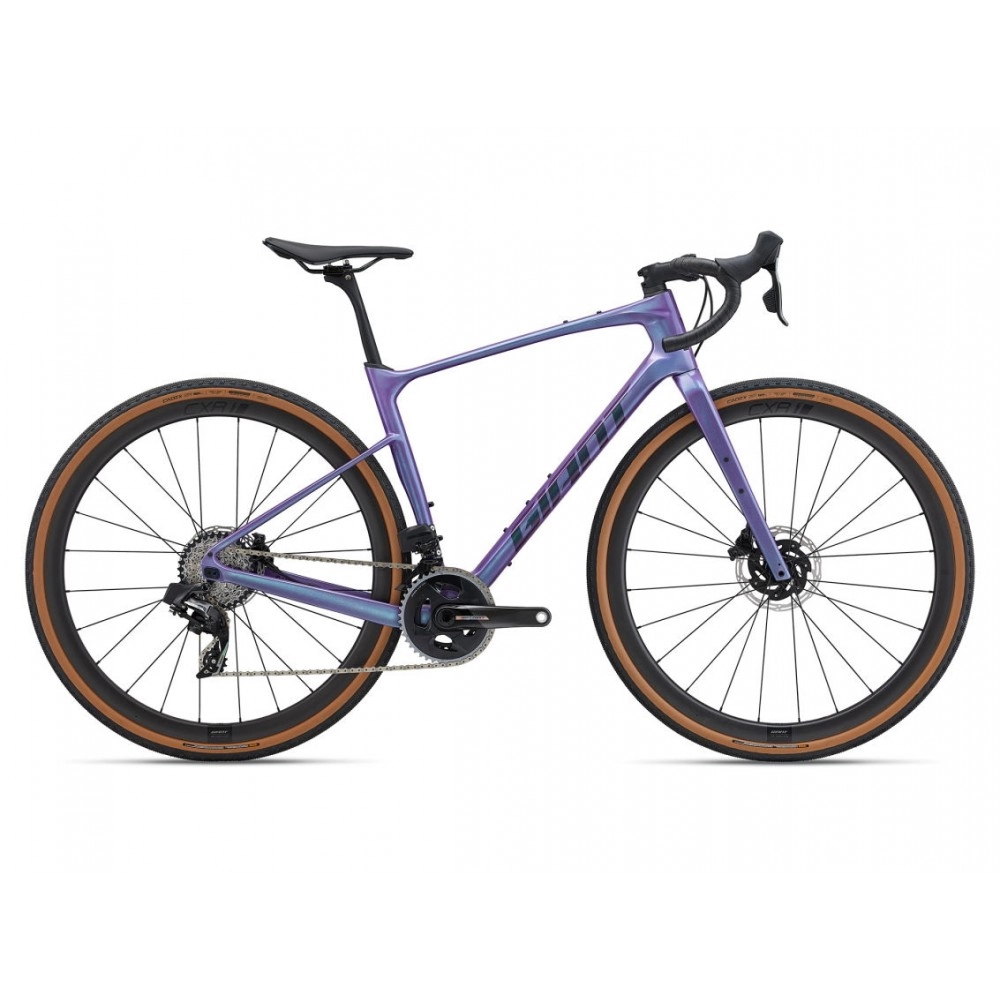

2024 Giant Revolt Advanced Pro 0 Gravel Bikes
Fast gravel is fun gravel. The race bike of choice for Giant gravel racing pros is superlight, smooth over rugged roads, and adaptable to all types of conditions and riding styles. Race it, ride it, love it.
This gravel crusher is built on a lightweight Advanced composite frameset with updated geometry so you can tackle long, hard rides with greater efficiency. It’s adaptable to your riding style and terrain with a flip chip feature on the rear dropout that adjusts the wheelbase and tyre clearance (up to 53mm). You can choose a standard D-Fuse seatpost for maximum compliance or a 30.9mm round or dropper post. A lightweight composite fork eats up bumps and the Contact SLR XR D-Fuse carbon handlebar minimises fatigue by further absorbing shocks and vibrations.
Key Performance Factors
Lightweight efficiency: Advanced composite frame and Advanced SL composite fork* save a combined 200 grams compared to the previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing. *Pro model only
Tuned compliance: A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimise compliance without sacrificing stiffness while cornering, sprinting and climbing.
Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
|Advanced composite, 12x142mm thru-axle // Flip chip dropout
|Advanced SL composite, full-composite OverDrive steerer, 12mm thru-axle, disc
|Giant Contact SLR XR D-Fuse, 31.8mm // XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
|Stratus Lite 3.0
|Giant Contact, 8-degree // XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
|Giant D-Fuse SLR, composite, -5/+15mm offset
|Giant Approach SL
|SRAM Force eTap AXS, 24 speed
|SRAM Force eTap AXS Wide
|SRAM Force eTap AXS, 12 speed
|SRAM Force eTap AXS hydraulic // SRAM CenterLine rotors // [F]160mm, [R]160mm
|SRAM Force eTap AXS hydraulic
|SRAM Force, 10T-36T, 12 speed
|SRAM Force D1
|SRAM Force D1 DUB, 30T/43T // XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|SRAM DUB, press fit
|Giant CXR 1 Carbon Disc WheelSystem
|[F] Giant AR alloy, CenterLock, 12mm thru-axle // [R] Giant AR alloy, DT350 36T ratchet system, CenterLock, 12mm thru-axle
|CADEX AR, 700x40c, tubeless
|Tubeless prepared // 53mm max tyre size in “long” flip chip position // 45mm max tyre size in “short” flip chip position
