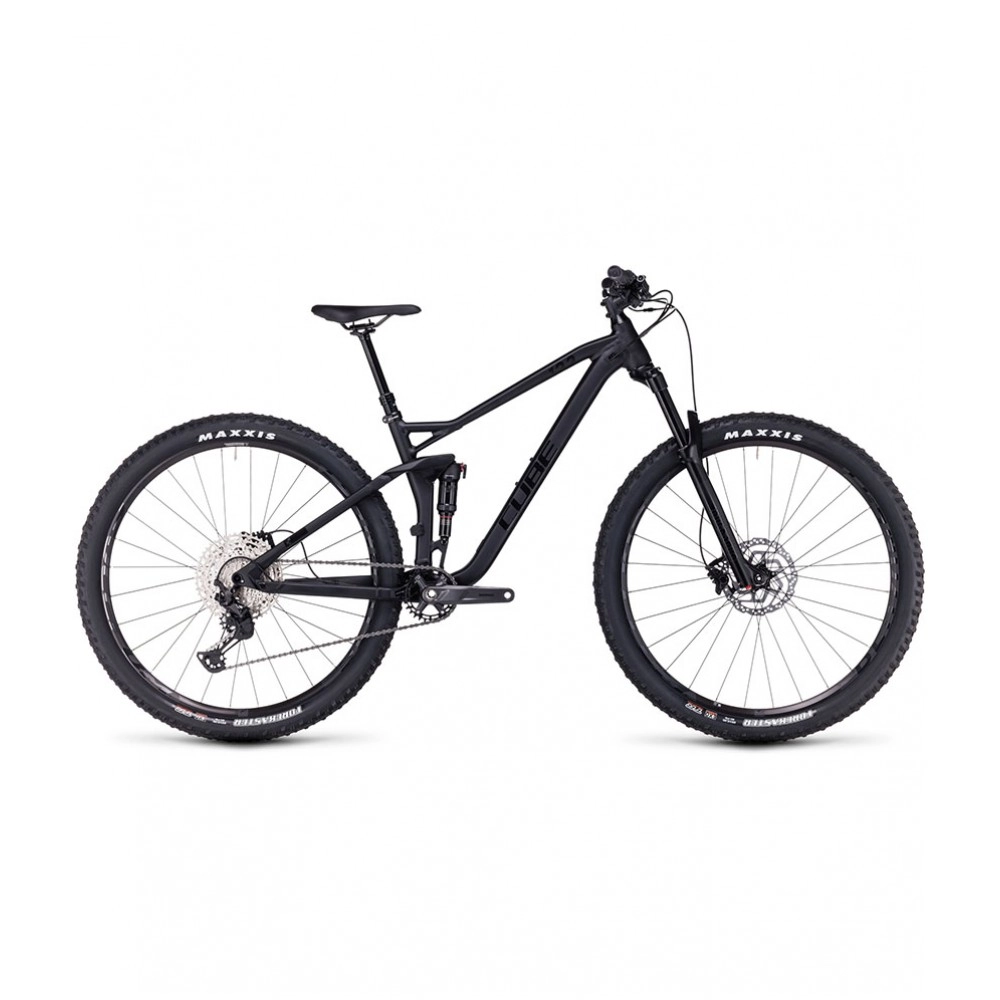

2023 CUBE STEREO ONE22 RACE MOUNTAIN BIKE

Like all our frames, the Stereo ONE22 is all about providing the best performance at the lowest possible weight. Hydroformed tubing is triple butted to save as much weight as possible without sacrificing strength. The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency. And it's all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times. There's even a SizeSplit XS option with 27.5in wheels for riders who are shorter in stature, but don't want to compromise on performance.

SPECIFICATION:
Frame
HPA (High Performance Alloy) triple-butted front and rear triangles with Advanced Hydroforming
Fork
RockShox Recon Gold RL Air
Shock
RockShox Deluxe Select+, rebound adjust, lockout, 190mm length x 45mm stroke
Hubs
Fulcrum Red 77, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Wheels
Fulcrum Red 77, 28 hole, tubeless ready
Wheel Size
29" 27.5"
Spokes
Fulcrum Red 77 wheelset
Tires
Maxxis Forekaster, EXO casing, TR, 2.35""
Chain
Shimano Deore M6100, 12-speed
Crank
Shimano MT511, Length: 170mm (XS/SM), 175mm (MD-XL)
Bottom Bracket
Shimano MT500PA, 92mm press-fit
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
Shifters
Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS
Brakeset
Shimano MT500, 2-piston, 180mm rotors, Shimano MT500
Handlebar
Newmen Evolution SL 318.25, 760mm width, 31.8mm clamp diameter
Saddle
Natural Fit Venec Lite
Seatpost
Cube dropper, 31.6mm, Single bolt
Drop:
100mm (XS)
120mm (SM)
130mm (MD-XL)
Stem
Newmen Evolution SL 318.4, 6° rise, 31.8mm bar clamp, Length: 40mm (XS), 50mm (SM), 60mm (MD/LG), 70mm (XL)
Grips
ACID React Pro
Headset
VP, ZS44 upper, ZS56 lower
Weight
14.5 kg
